Springing from the success of both brands in the fixie scene, Cinelli and Mash collaborated to create frames with a less traditional track-orientated use.


Cinelli Mash (2010-2012)[modifier]

It needs to be noted that the geometry in the table is from the last sighting of the Mash frame in the catalogue. When it first appeared, the geometry measurements were VERY bare and were very slightly different from the ones given here.

Tubeset: Columbus Airplane
Fork: 1-1/8" Carbon (Aluminium steerer)
BB Thread: BSA
Seatpost diameter: 31,6mm
Geometry: The original Mash geometry is a fairly aggressive track geometry.
Size S1 S T1 T Head
Tube 		a° b° R C F WB E Fork
XS 520 480 505 508 95 73 76,8 35 387 560 939 58 368
S 540 500 517 520 110 73,5 76,25 35 389 564 946 58 368
M 570 530 530 544 120 73,5 76 35 390 575 958 58 368
L 590 550 550 563 135 74 75,5 35 392 587 972 58 368
XL 620 580 575 590 163 74 74,5 35 395 602 990 58 368

Mish Mash Grey (2010[1]-2011[2])[modifier]

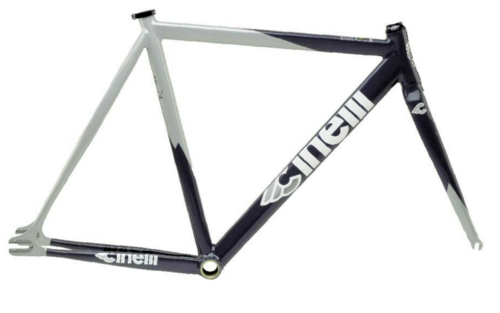

Cinelli Mash "Mish Mash Grey" (2010)

Green Metallic (2011[2]-2012[3])[modifier]

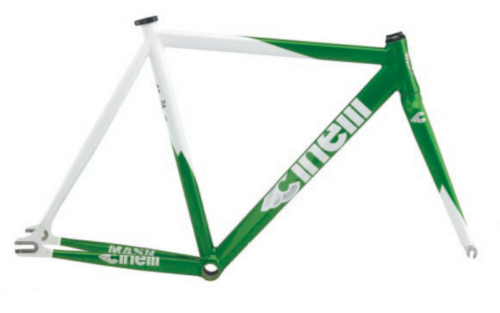

Cinelli Mash "Green Metallic" (2011)

Cinelli Mash Histogram (2012-2016)[modifier]

Tubeset: Columbus Airplane
Fork: 1-1/8" Carbon (Aluminium steerer)
BB Thread: BSA
Seatpost diameter: 31,6mm
Geometry: Built from the Mash's, steeper angles and raised bottom bracket.
Size S1 S T1 T Head
Tube 		a° b° R C F WB E Fork
XS 520 480 505 508 95 73 76,8 35 387 560 939 58 368
S 540 500 517 523 110 74,5 76,25 35 387 557 937 54 368
M 570 530 530 542 120 75 76 35 388 564 945 54 368
L 590 550 550 564 135 75 75,5 35 388 580 962 51 368
XL 620 580 575 589 163 75 75 35 388 600 982 51 368
XXL 640 600 595 610 180 75 75 35 388 619 1002 51 368


Histo (2012[4]-2013[5])[modifier]

Cinelli Mash Histogram "Histo" (2012)

Metal Histo (2014[6])[modifier]

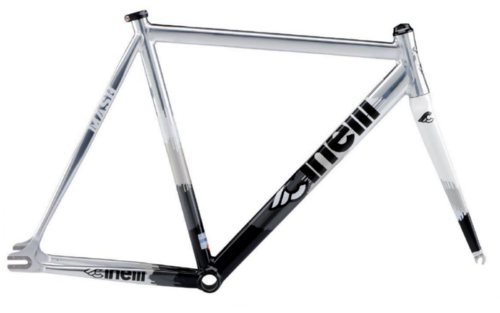

Cinelli Mash Histogram "Metal Histo" (2014)

Black Histo (2015[7]-2016[8])[modifier]

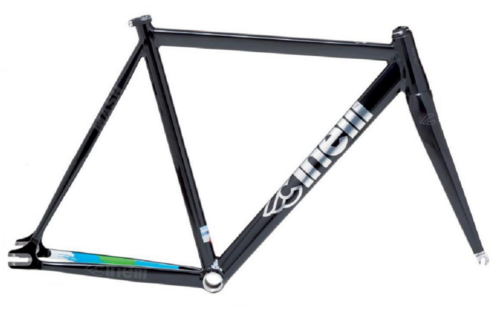

Cinelli Mash Histogram "Black Histo" (2015)

Cinelli Mash Bolt (2013[9])[modifier]

The Cinelli Mash Bolt was only available in the "TITANIUM GREY" colourway.

The Mash Bolt is a weird frame, I only sift through catalogues so it might be my own confusion speaking but it's hard to understand what the Bolt frame actually is. In the 2012 catalogue, the Mash Histogram's description states : "Built with the same high-end Columbus tube set as the original MASH ‘Bolt’ frame" and the Italian description of the Mash frame as the same description as the Mash Bolt in the 2013 catalogue. But no frame prior to this or in this catalogue have been called the Mash Bolt. So did the "Cinelli Mash" started being called the "Cinelli Mash Bolt" in 2013 ? I think that might be the case considering the geometry is exactly the same.

Tubeset: Columbus Airplane
Fork: 1-1/8" Carbon (Aluminium steerer)
BB Thread: BSA
Seatpost diameter: 31,6mm
Geometry: Exact same as the Mash.
Size S1 S T1 T Head
Tube 		a° b° R C F WB E Fork
XS 520 480 505 508 95 73 76,8 35 387 560 939 58 368
S 540 500 517 522 110 73,5 76,25 35 389 564 946 58 368
M 570 530 530 543 119 73,5 76 35 390 575 958 58 368
L 590 550 550 563 136 74 75,5 35 392 587 972 58 368
XL 620 580 575 588 163 74 74,5 35 395 602 990 58 368

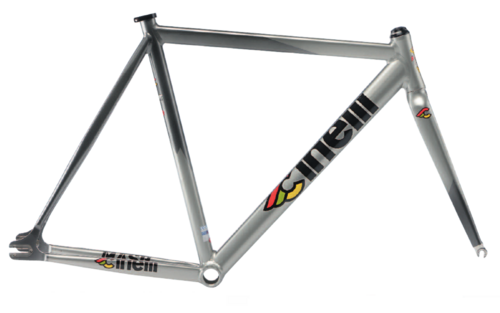

Cinelli Mash Bolt (2013)

Cinelli Mash Parallax (2014-2017)[modifier]

Sizes available: 50, 52, 54, 56 and 58
Tubeset: Columbus Airplane
Fork: 1-1/8" Carbon (Aluminium steerer)
BB Thread: BSA
Seatpost diameter: 27,2mm
Geometry: More basic track geometry than its predecessors. Still steep angles and high-ish bottom bracket.
Size S1 S T1 T Head
Tube 		a° b° R C F WB E Fork
XS 500 460 495 491 100 72,5 76 28 388 540 921 54 368
S 520 480 515 513 110 73,5 75,5 28 388 549 930 54 368
M 540 500 535 533 125 74,5 75 28 388 557 938 54 368
L 560 520 555 553 145 75 74,5 28 389 568 950 54 368
XL 580 540 575 574 160 75 74 28 389 587 965 54 368

Optical (2014[6]-2015[7])[modifier]

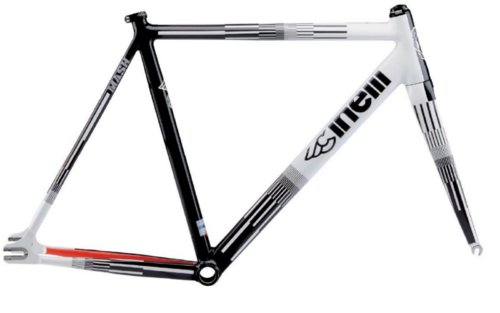

Cinelli Mash Parallax "Optical" (2014)

10 Years (2015[10])[modifier]

This was a limited edition run of the Parallax to celebrate the 10 year anniversary of the MASH brand. It was limited to a 100 frames. If you need to ask, yes the picture is not straight, as it is on the Mash website.

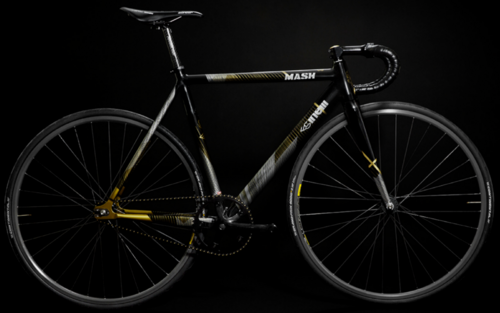

Cinelli Mash Parallax "10 Years" (2015)

Charcoal (2016[11])[modifier]

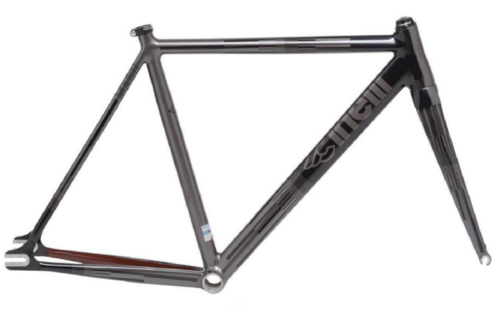

Cinelli Mash Parallax "Charcoal" (2016)

Cyanotype (2017[12])[modifier]

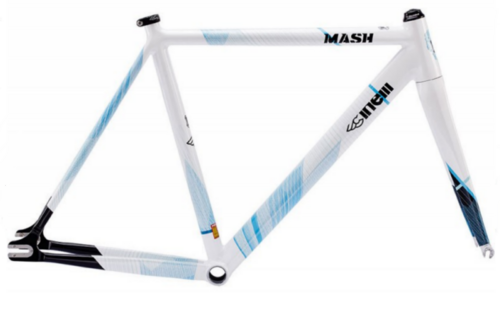

Cinelli Mash Parallax "Cyanotype" (2017)

Cinelli Mash SSCX (2014-2016[13])[modifier]

The Cinelli Mash SSCX was only available in the "PENTHACHROME" colourway.

Tubeset: Columbus Zonal
Fork: 1-1/8" Carbon (Aluminium steerer)
BB Thread: BSA
Seatpost diameter: 31,6mm
Geometry: Very slack geometry, almost CX.
Size S1 S T1 T Head
Tube 		a° b° R C F WB E Fork
S 510 470 520 513 120 71 74,5 45 420 586 999 58 390
M 535 495 540 532 140 72 74 45 420 592 954 58 390
L 560 520 560 551 155 72,5 73,5 45 420 602 965 58 390
XL 590 550 580 569 185 73 73 45 420 612 976 58 390
XXL 610 570 600 589 210 73 73 45 420 632 1001 58 390

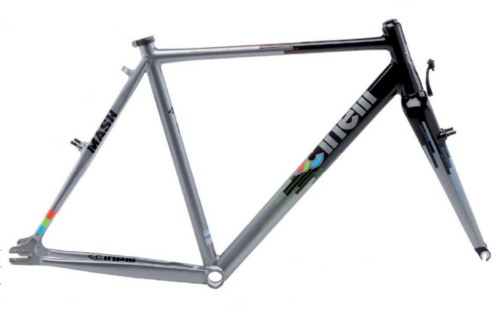

Cinelli Mash SSCX (2014)

Cinelli Mash Work (2016-2017)[modifier]

Tubeset: "Columbus custom cromoly superior steel"
Fork: 1-1/8" Steel
BB Thread: BSA
Seatpost diameter: 27,2mm
Geometry: More reminiscent of a road bike. Note the pretty steep seat-tube angle, short rake and short chainstays though.
Size S1 S T1 T Head
Tube 		a° b° R C F WB E Fork
S 520 485 500 100 72,5 75,5 38 390 552 936 54 380
M 540 500 530 110 73,5 75 38 390 570 954 54 380
L 560 520 550 120 74 74,5 38 390 582 965 54 380
XL 580 540 570 135 74,5 74 38 390 592 976 54 380
XXL 600 560 600 150 75 74 38 390 617 1001 54 380

Metallica (2016[14])[modifier]

Cinelli Mash Work "Metallica" (2016)

Dark Smoke (2017[15])[modifier]

Cinelli Mash Work "Dark Smoke" (2017)

Cinelli Mash Bolt 2.0 (2017[12])[modifier]

The Cinelli Mash Bolt 2.0 was only available in a single colourway. It has dual bottle cage spots and tapered head tube.

Tubeset: Columbus Airplane
Fork: 1-1/8" Carbon (Aluminium steerer)
BB Thread: BSA
Seatpost diameter: 31,6mm
Geometry: Steeper angles than the original Bolt, resulting in a more aggressive and compact bike.
Size S1 S T1 T Head
Tube 		a° b° R C F WB E Fork
XS 520 480 505 509 95 73 75,75 35 385 551 929 58 367
S 540 500 517 522 110 74,5 75,25 35 387 548 928 54 367
M 570 530 530 541 120 75 75 35 388 554 936 54 367
L 590 550 550 563 135 75 74,5 35 388 570 952 51 367
XL 620 580 575 589 163 75 74 35 388 589 972 51 367
XXL 640 600 595 609 180 75 74 35 388 609 991 51 367

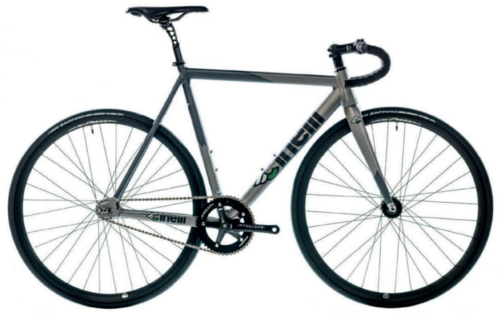

Cinelli Mash Bolt 2 (2017)

Sources[modifier]

These are very largely the same found on the Cinelli Vigorelli page as the information comes from the same catalogues.
